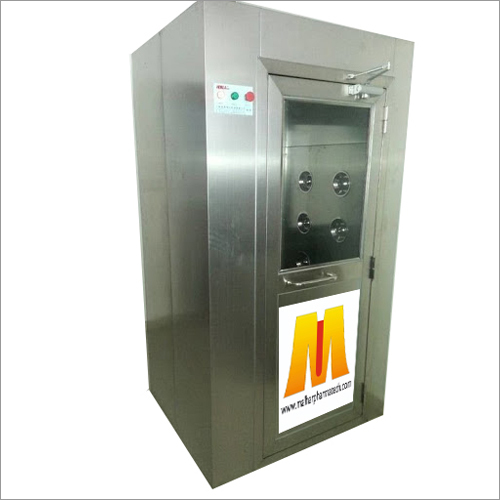

Air Shower

Feature

• SS 304 Sheet 1 mm Thik
• "Interlocking  System to  ensure that both the doors cannot open at the same time & to ensure that both the door stay locked during the time of air flow.
• Time Setting for Air shower operation time (settable for 30 seconds to 5 minutes)
• Emergency Stop will be provided"
• "Hepa Filter 0.3 micron
• Box Type,Moc:Aluminium,Media:Micro Fiber Glass,
• Efficiency:99.999% down to 0.3 Micron,Grade:H14   "
• "Fine filter 5 micron
• Flange Type,Moc:Aluminium,Media:Non Woven synthetic Polyester,Efficiency:95% down to 5 Micron,Grade:EU5 "
• "Motor Blower designed of statically and dynamically balanced for supply of sufficient
• capacity and static pressure to take care of airflow requirement for entire life of
• HEPA
• Double Shaft Motor Blower 1 HP,220 Volt ,2800 rpm  "
• Door entry Straight entry Straight exit and 90 degree door opening
• Magnehlic Guage 0-50 mm
• Air Adjustable Nozzle 30 mm Dia
• "Blower genrated Nozzle  Air  velocity 4000-6000 FPM with 30 mm dia.Nozzle which
• Effectively Cleans the surface of Object"
• Pin type Door Hinges
• Door Handle 'D' Type for Open & Close
• " SS 304 doors with double walled flush glass view panels and door closer
• Clear  view Toughen  Glass in door  - 5 mm thik glass"
• Stud for Hepa filter fixing
• DOP test port at upstream of HEPA filter integrity test.
• ON/OFF Switch & Socket
• Flourscent Light 36 watt
