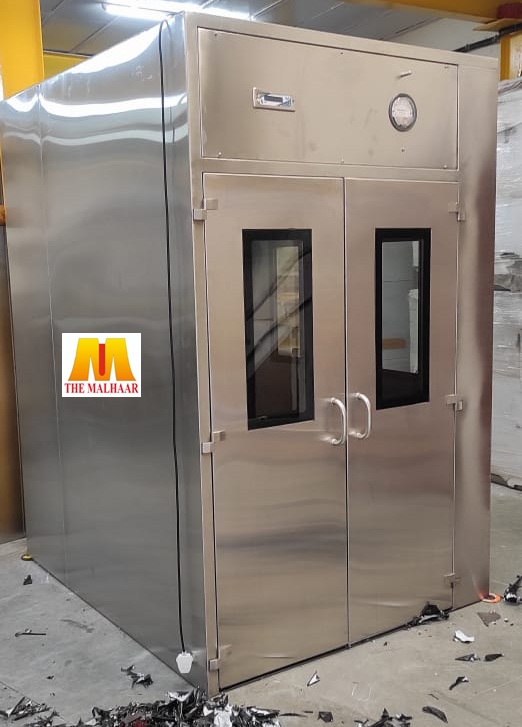

Floor Dynamic Pass Boxes
107562 INR
Product Details:
- Air Volume 300-650 CFM (model dependent)
- Feature Interlock system, UV light, easy cleaning, GMP compliant
- Condition New
- Lighting Door activated LED illumination inside chamber
- Type Floor Mounted Dynamic Pass Box
- Door Double walled, Electro-Magnetic Interlocking Doors / UV stabilized glass window
- Weight Approx. 75-120 kg (as per size)
- Click to View more
X
Floor Dynamic Pass Boxes Price And Quantity
- 107562 INR
- Microprocessor based controller with indicator
- <65 dB
- On-floor mounting with adjustable leveling feet
- Plug and play, minimal on-site assembly
- Matt, Mirror, or powder coated finish
- Toughened glass for clear inspection
- Upto 90% RH, non-condensing
- Class 100 inside passbox area
- Germicidal UV lamp with timer (optional feature)
- Interlock buzzer indicator for door status safety
- Double wall, leak proof construction with smooth finish
- 5C to 45C
Floor Dynamic Pass Boxes Product Specifications
- Double walled, Electro-Magnetic Interlocking Doors / UV stabilized glass window
- Floor Mounted Dynamic Pass Box
- Door activated LED illumination inside chamber
- New
- 300-650 CFM (model dependent)
- Interlock system, UV light, easy cleaning, GMP compliant
- Stainless Steel
- Air shower nozzle optional for advanced decontamination
- Approx. 75-120 kg (as per size)
- Stainless Steel 304 / 316
- 1.2 mm to 1.5 mm (body panel)
- Stainless Steel, anti-slip or plain available
- Transfer of materials between cleanroom and other areas
- HEPA filter with pre filter
- 220-240 V AC, 50 Hz
- HEPA (99.97% efficiency @ 0.3 micron)
- 900 x 900 x 1200 mm (custom sizes available)
- 50-250 W
- Horizontal / Vertical (as per design)
- Microprocessor based controller with indicator
- <65 dB
- On-floor mounting with adjustable leveling feet
- Plug and play, minimal on-site assembly
- Matt, Mirror, or powder coated finish
- Toughened glass for clear inspection
- Upto 90% RH, non-condensing
- Class 100 inside passbox area
- Germicidal UV lamp with timer (optional feature)
- Interlock buzzer indicator for door status safety
- Double wall, leak proof construction with smooth finish
- 5C to 45C
Product Description
- Electrical Supply 230V AC 1-Phase
- "Noise/ Vibration Level Less than 67 dB on scale A when Ambient is not
- greater than 55 dB on Scale A/Minimum"
- UV Light 5-18 watt with hour meter
- SS 304 DOP Port for PAO test
- SS Coving On Boottom for easy cleaning
- Return Air Perforated Grill
- "Hepa Filter 0.3 micron
- Box Type,Moc:Aluminium,Media:Micro Fiber Glass, Efficiency:99.999% down to 0.3 Micron,Grade:H14 "
- "Fine Filter 5 micron
- Flange Type,Moc:Aluminium,Media:Non Woven synthetic Polyester,Efficiency:95% down 5 Micron,Grade:EU 5 "
- Magnehlic Guage 0-25 mm
- " Interlocking System with Electro Magnetic Door Interlock Arrangment System
- Both Side Display with indication & feather Touch Switches For Door Open & Close.
- Light ,UV light , Motor Blower indivisual Swithces with Digital Hour Meter "
- Sandwitch type Door With Clear Glass View pannel (Toughen Glass 5 mm thik)
- SS Automosphere Nozzle (SS 304)
- SS 304 Hinges For Door (3 Hinges per door)
- Double Shaft Motor Blower ,1/16 H.P, 2800 R.P.M, 230 volt, 1 Phase
- Flourscent light 5-18 watt
- SS 304 Sheet-1 mm thik sheet matt finished
Other Details
- Size : 900 x 900 x 900 mm
- Capacity : Production Capacity 07 Nos per week
- Power : 1 phase
Superior Construction for Cleanroom Safety
Built with premium stainless steel (304/316), the double-walled, leak-proof structure resists contamination. The robust body (1.2-1.5 mm thickness) and toughened glass viewing panel guarantee durability and seamless inspection, supporting cleanroom integrity during critical transfers.
Advanced Control and Safety Features
A microprocessor-based control panel with clear indicators manages performance. Electro-magnetic door interlocking, interlock buzzer, and UV lamp (optional) further safeguard the process, optimizing employee safety and material sterility. LED lighting enhances visibility during usage.
Flexible and Efficient Integration
Plug-and-play design minimizes on-site assembly, making installation quick and straightforward. Adjustable leveling feet ensure steady placement, and customizable dimensions suit diverse facility requirements. With GMP compliance and low noise (<65 dB), it meets professional standards for varied applications.
FAQ's of Floor Dynamic Pass Boxes:
Q: How does the Floor Dynamic Pass Box ensure material transfer between cleanrooms without contamination?
A: The pass box uses double-walled, leak-proof stainless steel construction and Class 100 ultra-clean HEPA filtration (99.97% @ 0.3 micron), combined with electro-magnetic door interlocking and optional UV germicidal lamp. These features prevent cross-contamination during material transfer and maintain strict cleanroom standards.Q: What types of surfaces and finishes are available for the pass box?
A: This pass box offers three surface finishes: Matt, Mirror, and powder coated. All options are designed for easy cleaning and durability, ensuring compliance with GMP requirements and enhancing longevity even in demanding environments.Q: When should the UV lamp feature be utilized during operation?
A: The germicidal UV lamp, available as an optional feature, is best used before and after materials are transferred. Operated via timer, it helps eliminate microbes inside the pass box, adding an extra layer of decontamination for high-risk material handling.Q: Where can the Floor Mounted Dynamic Pass Box be installed, and how is installation achieved?
A: The pass box is engineered for direct on-floor mounting in cleanroom entry areas, adjoining controlled environments, or material access zones. Installation is plug-and-play, requiring minimal on-site assembly, and leveling feet ensure stable placement on various floor types.Q: What is the process of monitoring and controlling the pass box during use?
A: A microprocessor-based controller with visual indicators oversees air flow, UV lamp operation, noise levels, and door status. The interlock buzzer provides enhanced door status safety, while LED illumination ensures clear visibility of the chamber interior during operation.Q: How does the pass box contribute to operational efficiency and safety?
A: Its interlock system, Class 100 clean air, adjustable air volume (300-650 CFM), and optional air shower nozzles ensure efficient and sterile transfer of goods. Together with stainless steel anti-slip flooring and robust door interlocks, it significantly minimizes contamination risk, enhances workflow, and upholds GMP standards.Q: What benefits does users gain from choosing customizable or advanced design features?
A: Custom dimensions accommodate unique site requirements, while advanced features like air shower nozzles and UV lamps allow enhanced decontamination. The entire unit's quiet operation (<65 dB), sturdy stainless steel structure, and easy cleaning design make it ideal for high-security environments in India's pharmaceutical, biotech, and electronics sectors.Tell us about your requirement
